concrete mixer

China Coal is to establish long-term, broader economic and trade cooperation and strategic partnership with a number of large state-owned enterprises and customers, and won t he unanimous approval of them.



Concrete Mixer,it is a kind of with the blade shaft rotating in the cylinder or tank, will a variety of raw materials mixing, make it become a kind of mixture or machine suitable for consistency.

Quality products trustworthy


Concrete Mixer (cement mixer) is a device that combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.

concrete mixer introduce

concrete mixer introduce
concrete mixer introduce

For smaller volume works portable concrete mixer is often used so that the concrete can be made at the construction site, giving the workers ample time to use the concrete before it hardens.

According to the nature of work

  • The intermittent
  • continuous

According to the principle of the points

  • Since falling
  • forced

According to the installation

  • stationary
  • mobile

According to the way of discharge points

  • Tilting type
  • The tilting type


Can be classified according to a lot of kinds of methods

The characteristics

  • advanced performance
  • high productivity
  • high mixing quality
  • compact structure
  • ow energy consumption
  • simple operation
Concrete Mixer function
Concrete Mixer function
Concrete mixer has a variety of functions

Concrete Mixer

Make each composition on the macro and micro

Destruction of cement particle reunion phenomenon, promote the development of dispersion phenomenon

Initial water damage of cement particles on the surface of compound film wrapping layer

Material particle collision between friction, reduce dust film

Increase the number of participating in sports mix each unit cell and the trajectory of the crossover frequency, acceleration and qualitative

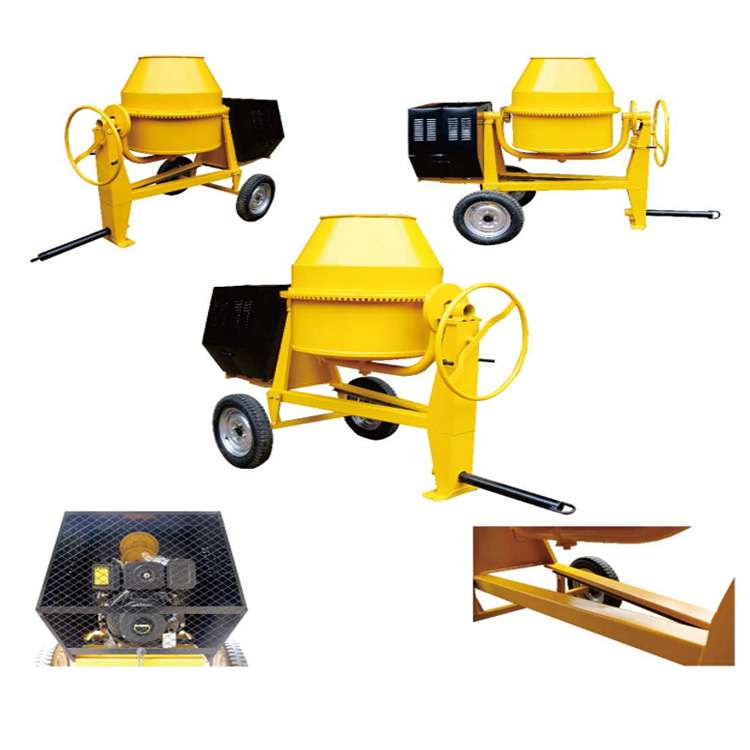

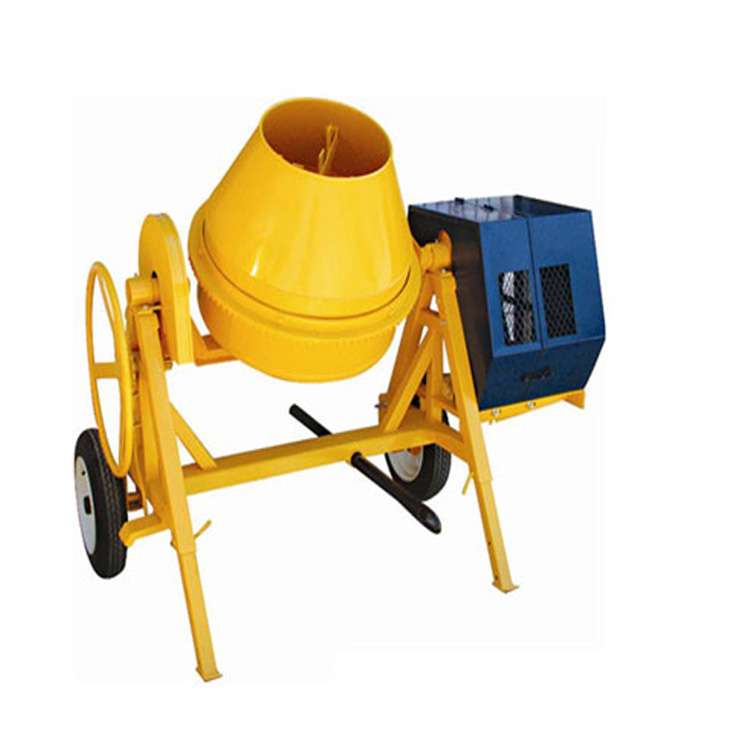

CM2A Portable high output

concrete mixer


Main Technical Parameter
Model CM-2A Portable Concrete Mixer
Charging Volume 260L 300L 350L 400L 500L
Reclaiming Volume 230L 270L 320L 370L 470L
Productivity 6-10m3/h 8-12m3/h 10-14m3/h 12-16m3/h 16-18m3/h
Speed of Mixing Drum 30r/min
Power Type Diesel Engine/Gasoline Engine/Electric Motor
Engine Power 4HP 6HP
Drum Thickness 2.75-3.75mm
Transmission Way Gear Wheel
Type of The Tires 4.00-8
Overall Dimension(LWHmm) 1700× 970×1600 1900×1070×1700 1900×1070×1750 1900×1070×1750 2000×1090×1115
Weight(kg) 300 320 330 340 400

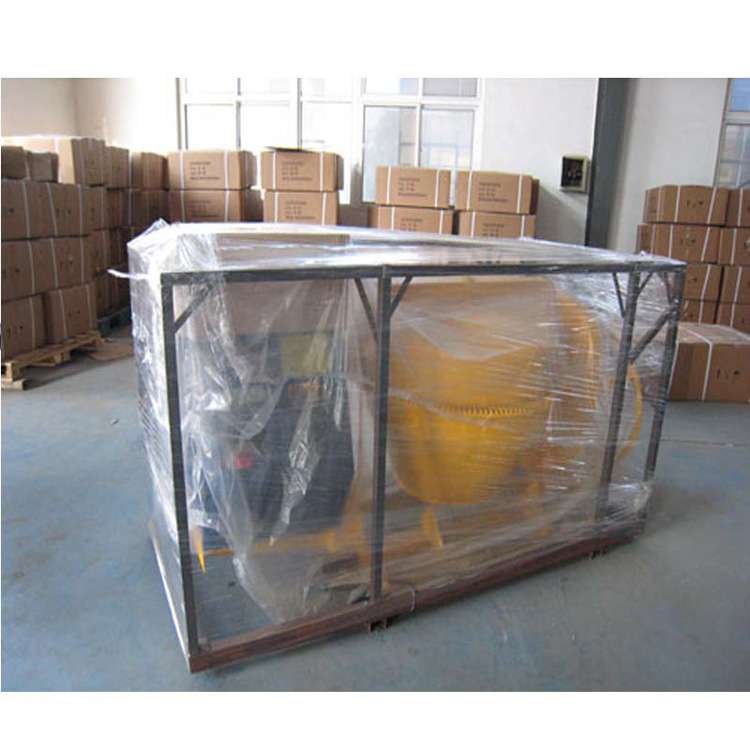

Loading Plan 14 sets Per20gp, 28 sets Per 40HC for Concrete Mixer 12sets/20GP, 26sets/40HC for Concrete Mixer


Concrete Mixer

1. Small in size

2. Manually operate and move easily

3. High speed and super quality for mixing

Concrete mixer is mainly composed of mixing barrel, loading and unloading mechanism, water supply system, engine, transmission mechanism, frame and the supporting device, etc.

Concrete Mixer

constituent part

Concrete Mixer   Concrete Mixer
Concrete Mixer

Quality products trustworthy

This concrete mixer is featured by engine power, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.


Concrete MixerConcrete Mixer Concrete Mixer
Concrete Mixer
Concrete Mixer

My company with complete production and sales of the mixer, complete variety, welcome your consultation

The technical details of JZC250T

Item JZC250T Cocnrete Mixer
Discharging volume 250L
Charging volume 400L
Productivity 6-8 M3/H
Mixing drum rotational speed 14 r/min
Maximum size of aggregate 60mm
Accuracy of water supply Error Less than or equal to 2%
Mixing motor 4kw
Water pump motor 0.55 kw
Tyre specification 500-16
Maximum towing speed 14 km/h
Overall dimension 2260*1990*2750mm
Weight 1160kg
