High Pressure Grouting Machine
High pressure grouting machine is mainly used for repairing concrete crack . Polyurethane Injection grouting machine filling the slurry into the crack,then the slurry will react with the water,in order to stop the water.
Productfeatures
Good mechanical performance, low noise, and no pollution.
Small volume, light weight, convenient carrying, and simple
operation.
Advanced technology, time&labor saving and higher efficiency.
The technology is reliable, reasonable structure, and safe use.
Continuous high pressure can make effective grouting into
micro gap and micro fractures, micropores and so on.
Grouting directly through grouting nipple installed on crack,
no clotting, no buried pipes, it's safe for structure.
For a variety of crack leakage, cellular leakage, underground
water inflow, grouting can be done directly without extra
water-handling.
associated materials
Low viscosity and non-granular material like polyurethane,
epoxy resin, acrylic resin can be used.
associated materials
Low viscosity and non-granular material like polyurethane,
epoxy resin, acrylic resin can be used.
associated materials
Low viscosity and non-granular material like polyurethane,
epoxy resin, acrylic resin can be used.



ProductRange of application
Apply to subway, tunnel, culvert, sewage
treatment, and concrete crack.
Apply to concrete roof cracks, through-wall pipe,
corner of wall, and leakage of water.
Apply to basement, underground garage,
underground passage, and so on.
Apply to the reinforcement of concrete
structures, girder, pillar and plate structure cracks.
Applying to Geological drilling engineering,
it can protect and strengthen the well
wall and plugging.
Apply to cracks
in various buildings and
underground concrete engineering,
expansion joints, construction cracks
and structure cracks.
A let you efficient work of high pressure grouting machine
- Electric
drill - The
case - High pressure
pipe - Material

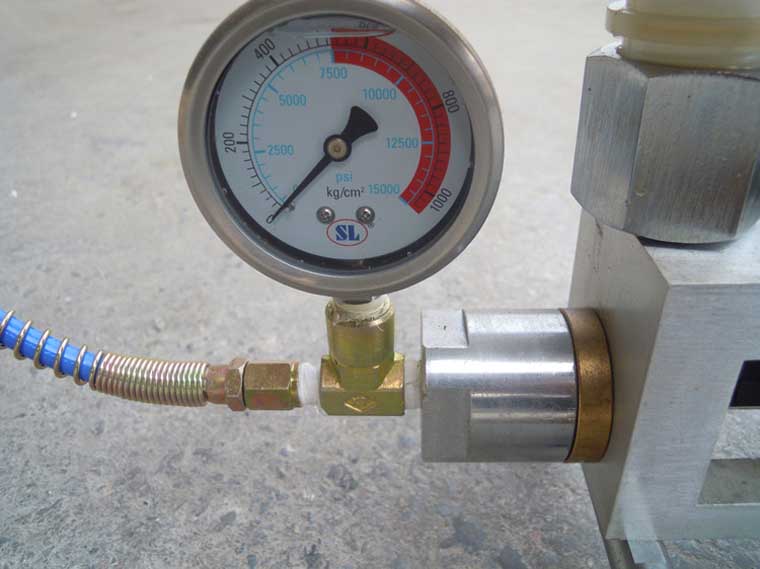

cup - Pressure
gauge



High pressure grouting machine is a kind of high pressure chemical grouting used in structure

grouting machine with the sophisticated & proper design easy to carry and portable, the special material of wear resistant, high-pressure perfusion & spraying machine are successfully developed by Shenglong.


High Pressure
Grouting Machine
Productclassification

JBY999 High Pressure Grouting Machine
Weight | 8kg |
Maximum output pressure | 13500psi |
Pressure of starting again | less than 7500psi |
Safe range of high-pressure hose | less than 13500psi |
Safe range of switch valve | less than 12000psi |

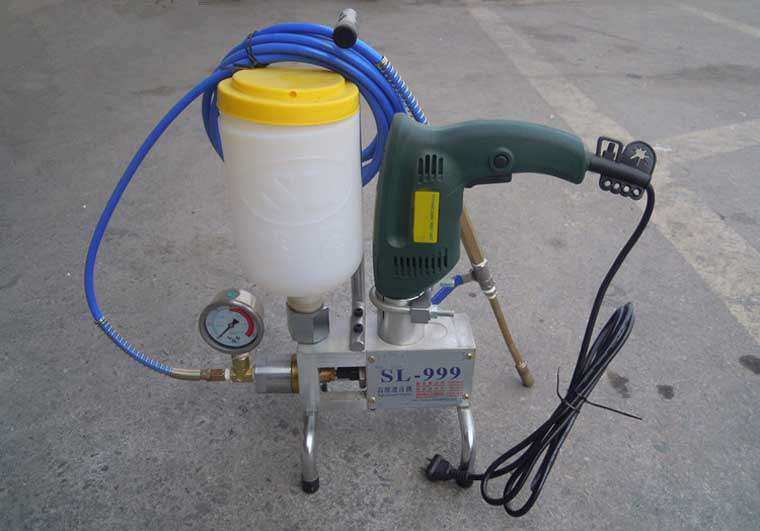

SL-999 can generate a working pressure of 15000psi only within 10 seconds.
Portable body, weighing only 7kg, easy to carry & maintain, maximum output pressure up to 15000psi. The fault can be self-maintenance during site operation. The medicament can also be injected into small cracks and pores(larger than 0.01mm).

Net weight | 7kg |
Maximum output pressure | 15000psi |
Pressure of starting again | less than 8000psi |
Safe range of high-pressure hose | less than15000psi |
Safe range of switch valve | less than 15000psi |
Packing size | 32*20*49CM |
SL-808 High Pressure Foam Grout Machine
Net weight | 8kg |
Maximum output pressure | 13500psi |
Pressure of starting again | less than 7500psi |
Safe range of high-pressure hose | less than13500psi |
Safe range of switch valve | less than 10000psi |
Packing size | 32*20*49CM |
Power | 550w/220v |



Pressure Grouting Machine
Applicable materials
1. Double liquid-type PU Foam
Waterproofing plugging agent, insulation
material,
2. Double liquid-type quick-setting
PU/EPOXY reinforcing agent
Portable SL-500 High Pressure Injection Grouting Machine
