2JP Underground Electric Scraper Winch

Application of 2JP Underground Electric Scraper Winch

The Underground Electric Mining Scraper Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.

Main Components of 2JP Underground Electric Scraper Winch

deceleration device, main roll, Vice reel, control devices, wire guiding device and motor. These parts were installed inside and outside the shell, the shell is a good steel parts, both to protect the supporting role, but also to bear all the load. It is connected on the basis of two slide bolt.

Binoculars winch a master reel (mounted on the right, ie, close to the motor side), a secondary reel (mounted on the left).

A master reel (mounted in the middle) in the three-drum winch, two vice reel (mounted on the left and right), three drum winch can be mounted two main reel (mounted on the right and middle), a vice volume cylinder (mounted on the left), each roll corresponding control device and a wire rope guide.

Main Parameter of 2JP Underground Electric Scraper Winch

Item		Unit	Model of winch
Item		Unit	2JP-7.5 3JP-7.5	2JP-15 3JP-15	2JP-30 3JP-30	2JP-55 3JP-55	2JP-75	2JP-90	2JP-110
Volume of scraper pan			0.1	0.25	0.4	0.6	1.0	1.5	1.6
Average puling Force of working drum		KN	8	14	28	50	54	62	78
Average Speed of wire rope		m/s	1.0	1.1	1.2	1.2	1.3	1.3	1.3
Diameter of wire rope		mm	9.3	12.5	15.5	18.5	20	23	24.5
Rope capacity of drum		m	45	80	90	100	180	125	110
Electric power		KW	7.5	15	30	55	75	90	110
Motor speed		m/s	1440 1210	1460 1525	1470 1685	1485 2070	1480	1480	1480
Overall dimension	length	mm	1210	1525	1685	2070	2350	2400	2600
	width	mm	565	660	380	1010	1515	1515	1515
	height	mm	490	620	735	890	1300	1300	1300

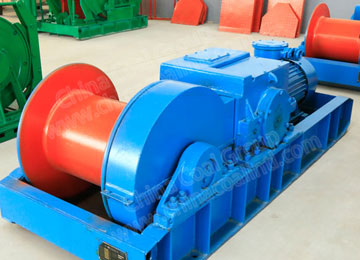

Pictures of 2JP Underground Electric Scraper Winch
