PZ Dry Cement Shotcrete Machine

Cement shotcrete machine is widely used in building construction, mines, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construct

Product Introduction

Cement shotcrete machine is widely used in building construction, mines, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations. There are wet shotcrete machine, dry shotcrete machine, explosion-proof shotcrete machine, and spare parts.

Main Parameter

Item	PZ-3	PZ-5	PZ-7
Output	3.5m3/h	5m3/h	7m3/h
Max. convey dist	Horizontal:200m Vertical: 20m	Horizontal:200m Vertical: 20m	Horizontal:200m Vertical: 20m
Water cement ratio	≤0.4	≤0.4	≤0.4
Max. Aggregate. size	20mm	20mm	20mm
Hose inner size	38mm	51mm	64mm
Operating air pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Air consumption	3-4 m3/min	7-8 m3/min	8-10 m3/min
Rotor diameter	350mm(150)	438mm	480mm
Motor power	Y112M-6-3KW	Y132-6-5.5(KW)	Y132-6-7.5KW
Voltages	380v or as your requirement	380v or as your requirement	380v or as your requirement
Overall dimension(mm)	1040550940	12807001280	15007001280
Whole weight	260kgs	600kgs	700kgs
wheel	Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel

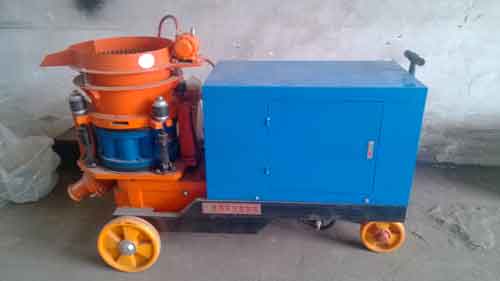

Figure Photos
