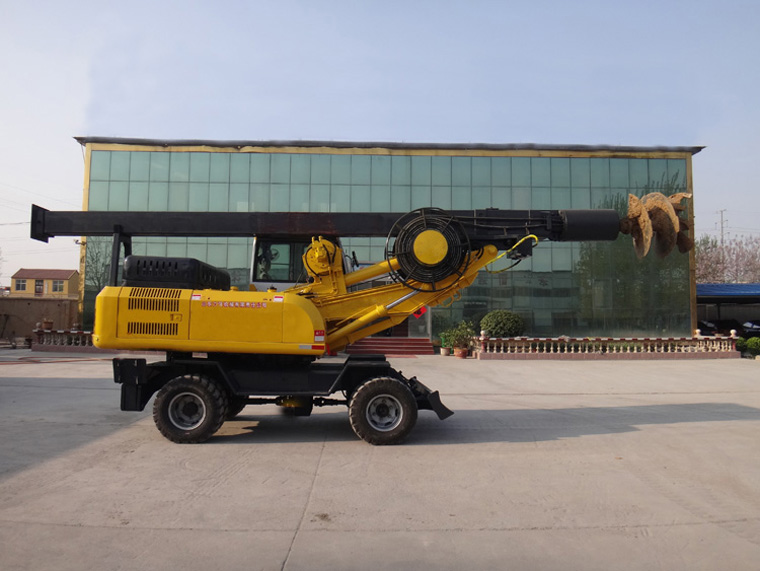

360 Degree Wheel Type Hydraulic Rotary Drilling Rig

Introduction of 360 Degree Wheel Type Hydraulic Rotary Drilling Rig

360 Degree Wheel Type Hydraulic Rotary Drilling Rig is suitable for the soil, the clay layer, fill soil, silt, silt layer, and some pebbles, gravel, weathered rock formations containing strong; suitable for housing construction, high-speed rail catenary scaffold, piling , urban construction, civil construction, new rural construction, power grids, landscaping and other projects.

Configuration of 360 Degree Wheel Type Hydraulic Rotary Drilling Rig

360 Degree Wheel Type Hydraulic Rotary Drilling Rig is constructed to a flexible, small-tonnage machine, simple operation, stability, piling super-fast, powerful four-wheel drive system moves fast, special facilities, small investment, quick returns; and the vehicle frame all 50 manganese steel, thicker, heavier rod,, body strengthening, life will not deform in order to achieve the characteristics of small models large pile hole drilling

Parameters of 360 Degree Wheel Type Hydraulic Rotary Drilling Rig

Description	(Unit)	value	Description)	(Unit)
(Max.Drilling Diameter)	mm	1200	(Maximum flow)	ml/r	110
(Max.Drilling Depth)	m	13	Overall Drilling Weight)	t	11.6
(Maximum pulling force)	t	8	(Dimension)	m	9.0×2.3×3.2
(Rotary table slewing angle)	°	360°	(Front track)	mm	1700
(Rotary Drive Rotary speed)	r/min	20-40	(Rear wheel)		1700
(Max.traveling speed)	km/h	45	(Engine Model)	/	4108turbo
(Working pressure)	Mpa	25	(speed)	r/min	2200
(Rotary Drive Max.output torque)	Kn.m	21	Engine power)	kw	88
(Driving form)	/	4
